Paiboon Sirimahboonkrongwattanapattayabangkokshinawatrachatuchakwong (let’s just call him Boon for short) is a foreign student in Singapore.

Given the chance to study in Singapore’s famed education system through his father Mr Sirimahboonkrongwattanapattayabangkokshinawatrachatuchakwong, who selflessly saved up enough money from years of hard work in Singapore’s construction sites, Boon aspires to become a Singapore Citizen one day, to embrace Singapore as his home, where he can pwn all lazy local students in maths and football, and still be able to enjoy his Pad Thai at Golden Mile Complex.

To that end, Boon is a little embarrassed that he doesn’t yet know how to sing the full national anthem of Singapore, for he has always been late for his school assembly aka *Mari Kita*, arriving just in time to catch the last “… *Majulah Singapore!*” verse of the anthem, and the second-last verse if he’s lucky (which doesn’t help much as the last two verses are exactly the same).

His hopes of learning another verse of the anthem is dashed each day as, despite his best efforts to wake up early, he has been consistently ‘played out’ by the erratic waiting times of the two bus services (leaving from different bus stops) plying the route between his school and his dormitory located ~~within earshot of snarling residents~~ in an *ulu* peaceful estate in Singapore’s northeast i.e. when he waits at Bus Stop A, Bus Service B arrives and vice versa (you know the drill).

Frustrated, he decides to stick with one bus service once and for all.

And so after a session of statistical enlightenment from a powerful priestess at a local Temple,

The waiting times for the two bus services was collected over a period of time:

Bus Service A:

For Bus Service B, he got lazy:

Stem | Leaf |
---|---|

20 30 40 | 2 3 0 1 2 6 6 7 9 9 3 3 3 4 6 6 8 8 9 9 |

A box-and-whisker plot is then drawn to represent each set of data above:

- For each bus service,
- Find the values of
`x`_{1},`x`_{2},`x`_{3},`x`_{4},`x`_{5} - Find the range of its waiting time.
- Find
`x`_{4}–`x`_{2}. What does this represent?

- Find the values of
- Compare and comment on the waiting times of Bus Service A and Bus Service B. Which service should Boon stick to?

As another addition to the E-Maths New Syllabus this year, box-and-whisker plots will likely jump out like mice to scare you at the end of your usual cumulative frequency distribution question.

But despite its bizarre-sounding name, it’s worth noting that box-and-whisker plots have nothing to do with mice but are just an eye-soothing way to summarize and present the same data from your stressful cumulative frequency curve, stem and leaf diagram, dot diagram etc. etc.

In fact, most of the stuff you need to know about box-and-whisker plots in O-Level Emaths are all found in this question. These are easy marks (albeit not many) being served to you on a platter – so don’t miss out this little topic when you’re studying!

## 7 Comments

曜

日

Someone should teach him to use SBS Iris. At least won't have to scratch head do maths work out average waiting times .... tsk tsk

😀

曜

日

Fingers crossed I don't make any silly mistakes...

1. Bus service A:

i) x1 = 0

x2 = 34

x3 = 36

x4 = 41

x5 = 46

ii) 46 minutes

iii) IQR = x4 - x2

= 7

Bus service B:

i) x1 = 22

x2 = 34

x3 = 41

x4 = 46

x5 = 49

ii) 27 minutes

iii) IQR = x4 - x2

= 12

2. Boon should stick to bus service A as its extreme scores and median are lower than that of bus service B's. Err, yeah, I have run out of persuasive points.

P.S. Your stem-and-leaf plot is very different to the ones I see at my school. Just a question: what grades would "E-Maths" be equivalent to, internationally?

曜

日

LTNS

FoxTwo😀Iris? You mean this Iris???

Please don't

saboour dear foreign friend here (esp if he needs to take Service 61)!曜

日

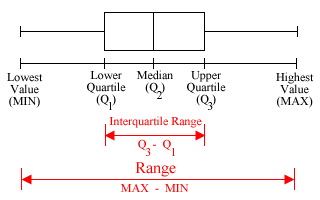

Kym:To be honest, Miss Loi wanted to put up more info on box-and-whisker Plots in the main blog post. But then that would be a little too easy, since box-and-whisker questionsaregenerally easy.So one needs to first get acquainted with the main parts of the plots:
